CF600 Plus IV Split Type Filling System
CF600 Plus IV 모듈형 충진 시스템
Features

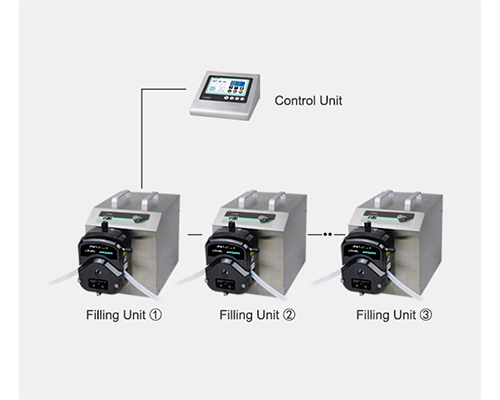

모듈 설계 : 충진 라인을 자유롭게 추가하거나 삭제할 수 있습니다
컨트롤러 : 1~32개의 충진 라인을 제어할 수 있습니다
충진 라인 : 병이 없을 경우 중지 신호를 받을 수 있습니다
디스플레이 : 충진 라인의 작동 상태가 표시됩니다
응용 분야 : 실험실, 산업용
Specifications
Drive |
Pump Head |
Flow Rate (mL/min) |
Motor Type |
Drive Dimension (L×W×H) |
Power Consumption |
Drive Weight |
CF600 Plus IV |
YZ35 |
0.69-12000 |
Closed-loop stepper motor |
302×222×304mm |
Each unit<300W |
11.9kg |
Product Composition and Flow Rate Range |
Drive |
Pump Head |
Pump Head Material |
Tube Clamp Material |
Tubing |
(Motor Speed 0.1~600rpm)
Flow Rate mL/min |
Tubing Size |
ID×Wall Thickness |
CF600 Plus IV |
YZ35 |
Aluminum Alloy
PPS |
PP |
26# |
6.4×3.3 (mm) |
0.69~4200 |
73# |
9.6×3.3 (mm) |
0.12~7400 |
82# |
12.7×3.3 (mm) |
0.2~12000 |
Speed range |
0.1-600 rpm |
Keypad lifetime |
300,000 times |
Filling volume range |
0.01-9999.99 mL |
Start/stop, direction signal |
Passive switch signal, such as foot
pedal switch; Active switch signal: 5-24V universal |
Filling time range |
0.1-9999.99 s |
Pause time range |
0.1-9999.99 s |
Communication interface |
RS485 communication
Modbus protocol (RTU mode) |
Filling volume resolution |
0.01 mL |
Time resolution |
0.01 s |
Output interface |
Output motor working status
(Open-Collector output) |
Copy numbers |
1-9999 times, 0 represent unlimited |
Back suction angle |
0-3600° |
Power supply |
AC 220V±10% 50Hz/60Hz (standard)
AC 110V±10% 50Hz/60Hz (optional) |
Filling accuracy |
<±0.5% |
Display |
4.3" industrial grade true color LCD screen |
Condition temperature |
0-40℃ |
Control method |
Touch screen and mechanical keypad |
Relative humidity |
<80% |
