KVP8
Vacuum Pump Series Long life, High negative pressure
|
KVP8 Vacuum Pump

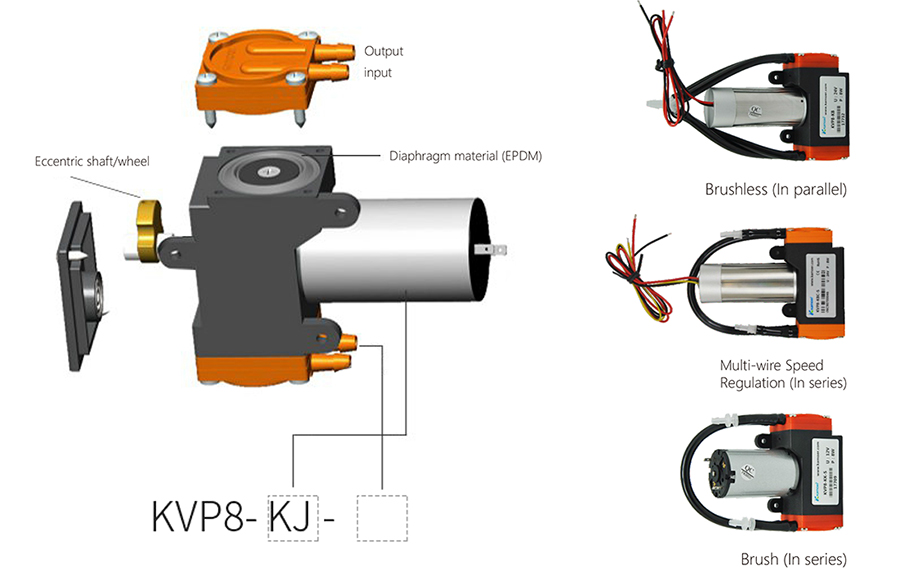

Micro diaphragm gas pumps from kamoer are based on
a simple principle - an elastic diaphragm,
Fixed on its edge, moves up and down its central point by
means of an eccentric. In this way the gas is transferred using
automatic valves.
Fixed on its edge, moves up and down
its central point by means of an eccentric. In this way the
gas is transferred using automatic valves.
|
|
Features
Small and Strong
Flow rate is faster than 480L/H
Series negative pressure < -0.082Mpa
Gas pressure >0.1Mpa
Paralleling negative pressure < -0.06Mpa
Extreme chemical stability
Dr y running, durableand maintenance free
Brushless and brush motor for selection

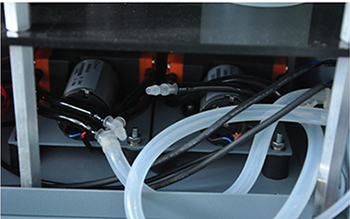

Application Areas
|
|
|
|
Gasometry
|
Physiotherapy
|
Placement equipment
|
Cosmetology
|

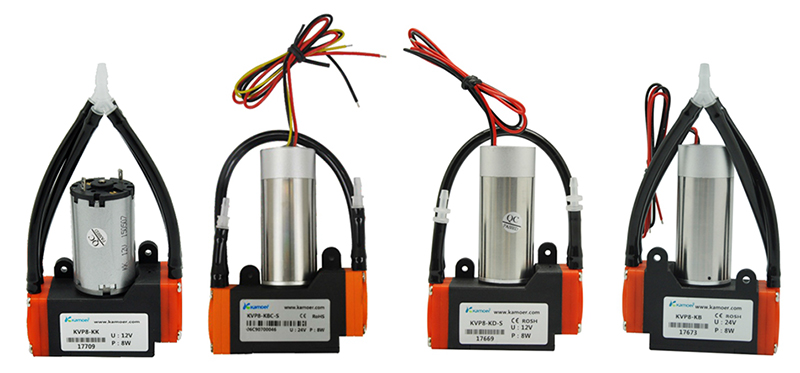

| 1. Motor selection |
|
|
KJ: 24V Brush DC motor( 58mm)
KB: 24V Brushless DC motor( 67mm)
KBC: 24V Brushless speed motor( 67mm)
Brush motor lifetime: 2000h (theoretical value）
*SpeciÞc depending on usage |
KK: 12V Brush DC motor( 58mm)
KD: 12V Brushless DC motor( 67mm)
KDC: 12V Brushless speed motor( 67mm)
Brushless motor lifetime: 6000h(theoretical value）
|
| |
|
| 2. The type of tube connection |
|
|
Currently we offer two types of tube connection
1) “empty” means parallel connection 2) “s” means series connection |
3. Diaphragm material
Currently we offer the following diaphragm material
EPDM- Decent resistance and tolerance toward alcohol, acid, alkali, oxidant, ketone and grease, ect.
POOR resistance toward oil.
4. Performance chart
| Code |
Flow rate (L/H) |
Positive pressure（Mpa） |
Negative pressure（Mpa） |
KJ、KK、KB、KD(in parallel)
|
＞480 |
＞0.1 |
＜-0.06 |
KBC、KDC(in parallel)
|
60~480 |
KJ、KK(in series)
|
＞320 |
＞0.12 |
<-0.082 |
KBC、KDC(in series)
|
60~320 |
KD、KB(in series)
|
＞400 |
| Code |
Volt (V) |
No-load current average (A) |
Rated current (A) |
Weight (G) |
KJ
|
24 |
0.20 |
>0.5 |
238 |
| KK |
12 |
0.42 |
>1.2 |
240 |
KB
|
24 |
0.32 |
>0.6 |
277 |
| KD |
12 |
0.55 |
>1.5 |
280 |
| KBC |
24 |
0.4 |
>0.6 |
280 |
| KDC |
12 |
0.8 |
>1.5 |
280 |
Note: 1. No load current is the current when no gas transportation.
2.Rated current is approximately the current value when gas transportation of the input and output under the atmospheric
pressure. During actual use, with the gas input, the output pressure increases,the actual current values also increases accordingly.
Working condition
Environment temperature 0～40℃
Relative humidity＜80%
