KVP8-Pump
Vacuum Pump Series
Long life, High negative pressure

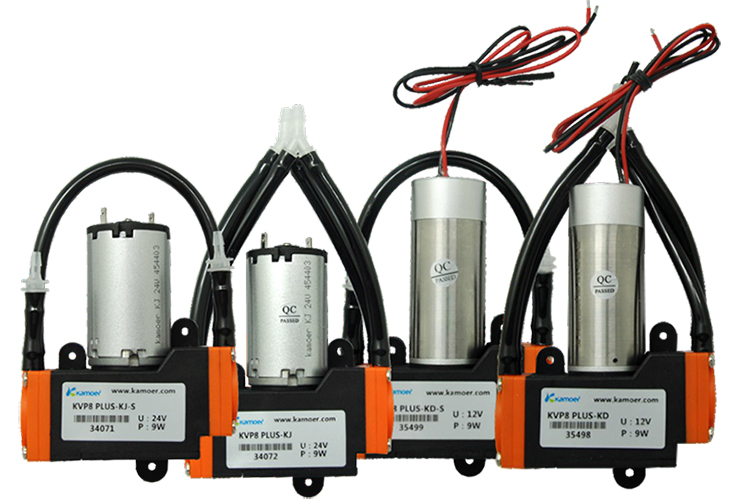

KVP8 Plus Vacuum Pump
Micro diaphragm gas pumps from kamoer are based on a simple principle - an elastic diaphragm,
Fixed on its edge, moves up and down its central point by means of an eccentric. In this way the gas is transferred using
automatic valves. Fixed on its edge, moves up and down its central point by means of an eccentric. In this way the gas is
transferred using automatic valves.
|
Features
· Small and Strong
· Flow rate is faster than 380L/H
· Series negative pressure < -0.09Mpa
· Gas pressure >0.1Mpa
· Paralleling negative pressure < -0.07Mpa
· Extreme chemical stability
· Dr y running, durableand maintenance free
· Brushless and brush motor for selection
|
|

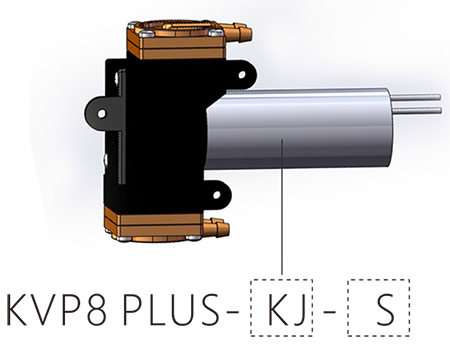

| 1. Motor selection |
|
|
4 kinds of DC motor for selection, code as follows:
KJ: 24V Brush DC motor( 58mm)
KB: 24V Brushless DC motor( 67mm)
Brush motor lifetime: 2000h (theoretical value
*SpeciÞc depending on usage |
KK: 12V Brush DC motor( 58mm)
KD: 12V Brushless DC motor( 67mm)
Brushless motor lifetime: 6000h(theoretical value)
|
2. The type of tube connection Currently we offer two types of tube connection
1) “empty” means parallel connection 2) “s” means series connection |
|
3. Diaphragm material
Currently we offer the following diaphragm material
EPDM- Decent resistance and tolerance toward alcohol, acid, alkali, oxidant, ketone and grease, ect.
POOR resistance toward oil.
4. Performance chart
| in Parallel |
Code |
Volt (V) |
Current (A)) |
Flow rate (L/H) |
Positive
pressure (Mpa) |
Negative
pressure (Mpa) |
Noise (dB) |
Power (W) |
KVP8PLUS
|
KK |
12 |
0.75 |
≥600 |
≥0.15 |
≥0.07 |
≥74 |
9 |
| KJ |
24 |
0.375 |
≥600 |
| KD |
12 |
0.75 |
≥660 |
| KB |
24 |
0.375 |
≥660 |
| in Series |
Code |
Volt (V) |
Current (A) |
Flow rate (L/H) |
Positive
pressure (Mpa) |
Negative
pressure (Mpa) |
Noise (dB) |
Weight (G) |
| KVP8PLUS-S |
KK |
12 |
0.75 |
≥380 |
≥0.12 |
≥0.09 |
≥72 |
9 |
| KJ |
24 |
0.375 |
≥380 |
| KD |
12 |
0.75 |
≥400 |
| KB |
24 |
0.375 |
≥400 |
Note: 1. No load current is the current when no gas transportation.
2.Rated current is approximately the current value when gas transportation of the input and output under the atmospheric pressure. During actual use,
with the gas input, the output
pressure increases,the actual current values also increases accordingly.
Working condition: Environment temperature 0～40℃
Relative humidity＜80%
