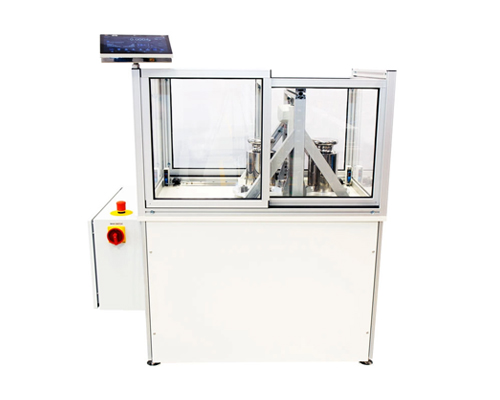

RADWAG AKM-2 Automatic Mass Comparators
자동 질량 비교기 AKM-2 시리즈
Description
Application:
Mass comparator AKM-2 series featuring automatic mass loader enables automatic determination of mass deviations of a single weight in a single cycle.
The system of automatic mass comparator is commonly applicable in mass measuring laboratories, and particularly in certification units for weights classes E, F and M.
Design and functionality:
The supervising part of a mass comparator is a digital module which cooperates with a controller of instrument’s mechanical components.
The automatic mass loader features a basis with self-centring fields, a robot and a steel body. The digital module and the robot are located in mass comparator’s weighing chamber.
The loading robot is controlled by the computer’s controller. The instrument is operated by means of digital display which is plugged to mass comparator’s controller.
Lengthwise shift of the loading robot with weights is carried out automatically using solenoid actuators.
Additional software functions enable loading and taking off the weights, data processing and storing, and data export to instrument’s memory.
Specifications
| Compared products |
AKM-2.20.5Y Automatic Mass Comparators |
AKM-2.50.5Y Automatic Mass Comparators |
| E1 |
5 kg ÷ 20 kg |
20 kg ÷ 50 kg |
| E2 |
1 kg ÷ 20 kg |
5 kg ÷ 50 kg |
| F1 |
1 kg ÷ 20 kg |
5 kg ÷ 50 kg |
| F2 |
1 kg ÷ 20 kg |
5 kg ÷ 50 kg |
| Maximum capacity [Max] |
20,5 kg |
51 kg |
| Readability [d] |
0,1 mg |
1 mg |
| Standard repeatability [5% Max] |
0,15 mg |
- |
| Standard repeatability [Max] |
0,2 mg |
2 mg |
| Permissible repeatability |
0,3 mg |
3 mg |
| Eccentricity (tested load) |
0 g |
0 kg |
| Electric compensation range |
-500 g ÷ +500 g |
0 g ÷ 50,5 kg |
| Stabilization time |
30 s |
30 s |
| Adjustment |
| external |
| Display |
10″ touchscreen |
10″ touchscreen |
| Supplementary weights internal |
automatic |
- |
| Supplementary weights external |
- |
- |
| Communication interface |
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot |
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot |
| Power supply |
100 – 240 V AC 50/60 Hz |
100 – 240 V AC 50/60 Hz |
| Operating temperature |
+15 ÷ +30 °C |
+15 ÷ +30 °CI |
| Operating temperature change rate |
±0,5°C/12h (±0,3°C/4h) |
±0,5°C/12h (±0,3°C/4h) |
| Relative humidity |
40% ÷ 60% |
40% ÷ 60% |
| Relative humidity change rate |
±5%/12h (3%/4h) |
±5%/12h (3%/4h) |
| Weighing pan dimensions |
ø190 mm - self centering |
ø100 mm |
| Weighing device dimensions |
1150×770×1300 mm |
1050×650×1150 mm |
| Controling device dimensions |
249×170×72 mm |
249×170×72 mm |
| Packaging dimensions |
1150×770×1300 mm |
1770×900×1100 mm |
| Net weight |
235kg |
260 kg |
| Gross weight |
352 kg |
380 kg |
* Repeatability is expressed as a standard deviation determined for 6 ABBA cycles.
Standard deviation is experimentally determined under ambient conditions for calibration of E1 class mass standards specified in OIML R111 (Table C.1.) document.
* Wi-Fi® is a registered trademark of Wi-Fi® Alliance.
Accessories
RFID Tags
Barcode scanners
Additional modules
Protective cover for balances
RS 232, RS 485 cables |
THBR 2.0 System - Ambient Conditions Monitoring
Receipt Printer
Fingerprint Reader
RS 232, RS 485 cables
RS 232 cables (scale - printer) |
Software
RAD-KEY
E2R System
THB-R |
RMCS System |
Device dimensions
