Thermo Scientific™ Savant SpeedVac Vacuum Concentrators
진공농축기
Description

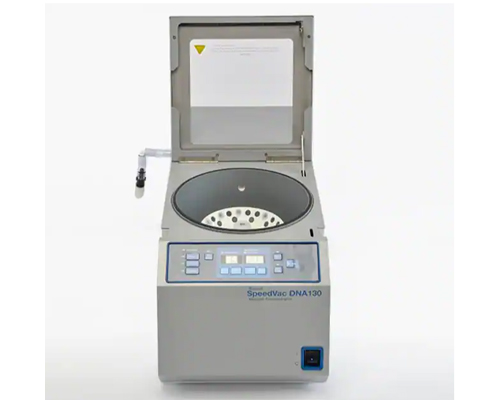

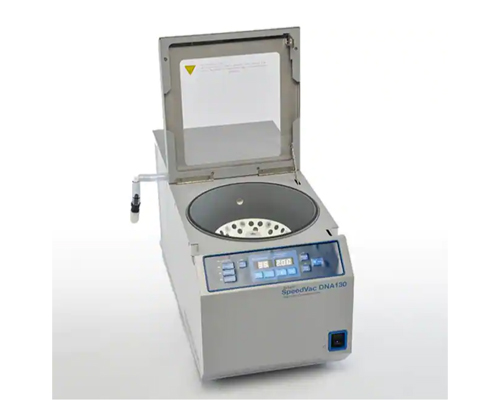

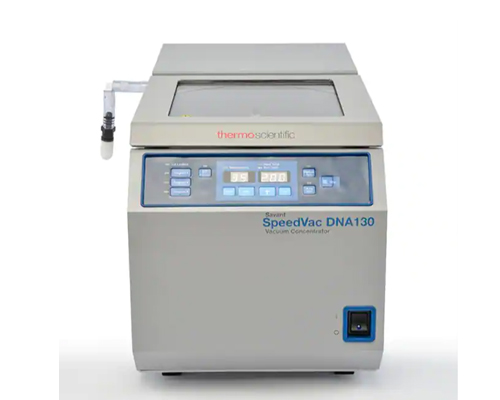

Designed for fast, efficient concentration of DNA and RNA applications, the Thermo Scientific™ Savant SpeedVac™ DNA130 is a compact, integrated vacuum concentrator.
SpeedVac™ DNA130 vacuum concentrator will support sample preparations with ease and efficiency.
· Compact, easy to use design: smallest integrated benchtop unit saves lab bench space.
· Corrosion-resistant, PTFE coated chamber offers years of service
· Built-in, oil free vacuum pump offers maintenance-free operation
· Includes a rotor that holds 36 x 1.5-2.0 ml tubes (RD36)
Specifications
|
인증 |
UL Listed to US and Canadian requirements. CE marked |
보유 |
Accommodates 36 x 1.5 mL Tubes, 72 x 0.5 mL Tubes and 2 Microwell Plates |
포함 |
RD36 rotor (36x 1.5-2.0 ml tubes) |
최대 진공 |
<10 Torr (13 mbar, 1.3k Pa) |
배송 중량(영국식 단위) |
105 lb. |
배송 중량(미터법) |
48 kg |
전압 |
115 V |
온도 범위(미터법) |
Ambient (17°C to 32°C) to 65°C |
챔버 재질 |
PTFE-coated Aluminum |
설명 |
SpeedVac DNA130 Vacuum Concentrator System |
전기 요구사항 |
115 V 60 Hz |
암페어 |
10 A |
플러그 유형 |
NEMA 5-15P |
중량(미터법) |
39 kg |
치수(길이 x 폭 x 높이) |
11.5 x 25 x 12 in. (29 x 64 x 31 cm) |
Operating Features:
· Consistent performance: designed to ensure consistent drying times and reproducible results
· User-friendly interface
· Three user defined programs that can be modified and saved
· Temperature set point: ambient, 35°C to 65°C in 5°C increments
· Heat Time setting: from 1 m to 9h 59 m or continuous
· Run Time setting: from 1m to 9h 59m
· Audible alarm to alert user when run is complete
Sample Protection
· Dry at ambient temperatures or using low heat to avoid sample denaturing
· Oil-free diaphragm pump provides gentle transition from atmosphere to ultimate vacuum setting with no solvent bumping
Safety Features
· PTFE-coated chamber resists chemicals and cleans easily
· Latched lid and lid lock indicator ensures user safety during operation

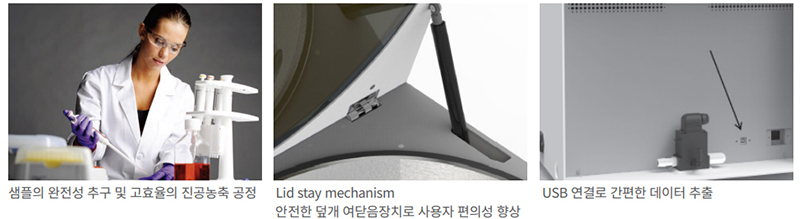

· Lid stay mechanism to secure lid while it‘s open, allowing user to have both hands free for operation
· Unit and pump are virtually maintenance-free
· External post trap to neutralize ammonium hydroxide vapors
· Optional chemical traps and optional cartridges to trap radioactive chemicals to minimize concerns in handling hazaRDO™us fumes and chemicals.
Solvents and Solvent Combinations:
· Water
· PCR buffers (aqueous)
· Ethanol and water
· Ammonium Hydroxide (will require an ammonia post-trap ANT-100 and neutralizing solution accessory ANS121)
Accessories Rotors
소용량 샘플용 – DNA 130 시스템 호환
| Working volume (ml) |
Capacity |
Sample Container |
Rotor Cat. No. |
1.2-1.6 |
24 |
1.5 ml microcentrifuge tubes |
RH12-29 |
1.2-1.6 |
36 |
1.5 ml microcentrifuge tubes |
RD36 |
0.5 |
48 |
0.5 ml microcentrifuge tubes |
RD48 |
0.5 |
72 |
0.5 ml microcentrifuge tubes |
RD72 |
-- |
2 |
Shallow well plates |
RD2MP |
Options
어플리케이션별 옵션 사항
| Cat. No. |
Description |
| Vapor Trap (Included with the Package) |
| GCF400 |
Glass condensation flask |
| FC400 |
Flask cover for GCF400 |
| 145-6012-00 |
Foam insulating ring |
| SCC1 |
CryoCool heat transfer fluid (1 liter) |
| Oligo Prep |
| ANT100 |
Oligo prep post-trap assembly |
| ANS121 |
Ammonia neutralizing solution (1 bottle) for use with ANT100 |
| Chemical Traps |
| SCT120 |
Chemical trap kit for radioactivity |
| DC120A |
Disposable cartridge for neutralizing acid |
| DC120R |
Disposable cartridge for trapping volatile radioactivity |
| Cart |
| CC120/DX |
Deluxe convenience cart |
