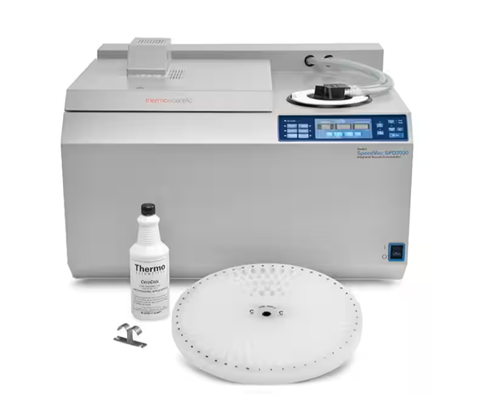

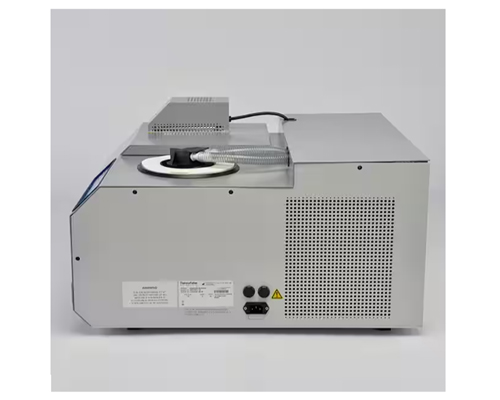

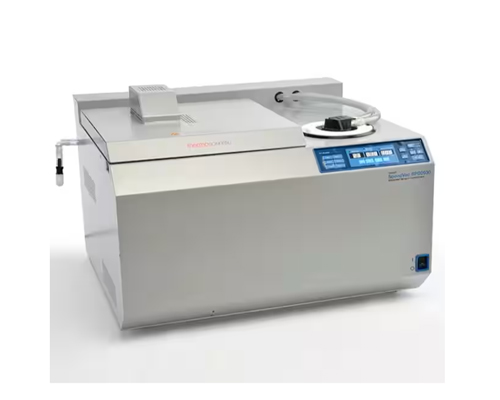

Thermo Scientific™ Savant SpeedVac Vacuum Concentrators
SPD 2030 시스템
Description
Dry and concentrate aqueous or non-aggressive samples with speed and efficiency with Thermo Scientific™ Savant SPD1030 and SPD2030 Integrated SpeedVac™ Systems and kits. Fully integrated for fast installation, programming.
Ideal for drying DNA/RNA precipitates, PCR samples, proteins, enzyme, HPLC fractions in plates or tubes in water/ethanol or isopropanol and other organic solvents.
SpeedVac SPD1030 System is designed for medium capacity (i.e.,120 x 1.5 mL tubes, other formats). SpeedVac SPD2030 System allows higher capacity (i.e.,200 x 1.5 mL tubes, other formats).
· Proteins, Enzymes, HPLC Fractions : H2O, acetonitrile, methanol, ethanol+0.1% TFA
· DNA/RNA : DNA in acetonitrile or H2O, Ammonium hydroxide(oligos), ethanol, H20, Buffers
Specifications
|
인증 |
UL Listed to US and Canadian requirements. CE marked.This product is not available for sale in California. Please contact Customer Service for possible alternatives. |
보유 |
Accommodates up to 200 x 1.5 mL tubes, 30 x 15 mL tubes, 48 x 50 mL tubes, 20 micro well plates and 8 Deepwell plates. Other rotor options available to accommodate a variety of tubes, vials and plates. |
포함 |
Diaphragm pump, -50°C cold trap and vacuum gauge, RH40-11 rotor (40x1.5-2ml tube) |
최대 진공 |
<10 Torr (13 mbar, 1.3k Pa) |
배송 중량(영국식 단위) |
260 lb. |
배송 중량(미터법) |
136 kg |
온도 범위(미터법) |
Ambient (17°C to 32°C) to 80°C |
챔버 재질 |
PTFE-coated Aluminum |
설명 |
SpeedVac SPD2030 Integrated System Kit |
전기 요구사항 |
220 V 60 Hz |
암페어 |
8 A |
중량(미터법) |
98kg |
치수(길이 x 폭 x 높이) |
31 x 28 x 19 in. (79 x 71 x42 cm) |
Easy to Use:
· Plug and play installation: Integrated solution includes a concentrator, oil-free vacuum pump and cold trap all integrated in one unit. No tubing connections needed.
· Intuitive and user friendly program digital display which allows use of three preset programs and ability to create three customizable programs to set heat, run time, ramp rate and vacuum level for efficient operation.
· Wide variety of rotors to support sample format from micro tubes, vials and microplates to 250-ml flasks
· Audible alarm to alert user when operation is finished
· Kits are available, which includes the integrated system and rotor
Robust, Low-Maintenance Design:
· Oil-free vacuum pump is virtually maintenance free
· PTFE coated chamber protects the chamber from corrosion, while making cleaning easy
Enhanced Evaporation:
· Faster sample drying provided with radiant cover
· Vacuum ramping and pressure controls eliminate sample bumping to maintain sample integrity
· Reduced vapor path from concentrator to refrigerated vapor trap accelerates evaporation
· Rotors fit a wide variety of sample formats such as tubes, flasks, and shallow-well and deep-well microplates
Solvent and Solvent Combinations:
· Acetonitrile
· Ethanol
· Methanol
· Methylene Chloride
· Water
· Other organic solvents
SPD1030115 and SPD1030230 includes:
· Concentrators only, accessories sold separately
SPD1030A and SPD2030A includes:
· Integrated SpeedVac system
· CryoCool™ 1 L heat transfer fluid
· Glass condensation Flask (GCF400)
SPD2030P1 kit
· Integrated SpeedVac system
· 200 × 1.5mL rotor (RH200-12)
· CryoCool™ 1L heat transfer fluid
· Glass condensation Flask (GCF400)
Accessories
Rotors
대용량 샘플용– SPD2030, SPD300 시스템 호환
| Working volume (ml) |
Capacity |
Sample Container |
Rotor Cat. No. |
12 |
10 |
50 ml conical tubes |
RH12-29 |
40 |
48 |
50 ml conical tubes |
RH48-50U |
12 |
52 |
15 ml conical tubes |
RH52-15 |
12 |
30 |
15 ml conical tubes |
RH60-17-100 |
3.5 |
30 |
5 ml microcentrifuge tubes |
RH60-17-100 |
1.5 |
200 |
1.5 -2.0 ml microcentrifuge tubes |
RH200-12 |
4 |
200 |
13 x 100 mm glass or plastic tubes |
RH200-12 |
40 |
12 |
28 x 150 mm glass or plastic tubes |
RH12-29 |
40 |
32 |
18 x 150 or 16 x 125 mm glass or plastic tubes |
RH32-18-150 |
12 |
48 |
16 x 125 mm or 18 x 125 mm glass or plastic tubes |
RH48-18-125 |
24 |
88 |
16 x 125 mm glass or plastic tubes |
RH88-16-125 |
80 |
8 |
100 ml pear-shaped flasks |
RH8-200 |
3 |
192 |
1 4 ml dram vial or 15 x 45 mm vials |
RH192-15 |
16 |
50 |
20 ml scintillation vial |
RH50-28-60 |
-- |
12 |
Shallow well plates |
MPTR12-210 |
-- |
4 |
Deep well plates |
MPTR8-210 |
Options
어플리케이션별 옵션 사항
| Cat. No. |
Description |
| Vapor Trap (Included with the Package) |
| GCF400 |
Glass condensation flask |
| FC400 |
Flask cover for GCF400 |
| 145-6012-00 |
Foam insulating ring |
| SCC1 |
CryoCool heat transfer fluid (1 liter) |
| Oligo Prep |
| ANT100 |
Oligo prep post-trap assembly |
| ANS121 |
Ammonia neutralizing solution (1 bottle) for use with ANT100 |
| Chemical Traps |
| SCT120 |
Chemical trap kit for radioactivity |
| DC120A |
Disposable cartridge for neutralizing acid |
| DC120R |
Disposable cartridge for trapping volatile radioactivity |
| Cart |
| CC120/DX |
Deluxe convenience cart |
