Thermo Scientific™ Savant™ SpeedVac™ Medium Capacity Vacuum Concentrators for Combinatorial Chemistry Applications
SPD140 시스템
Description
Evaporate strong acids, bases and aggressive organic solvents with the Thermo Scientific™ SpeedVac Modular Vacuum Concentrators.
Approved for combinatorial chemistry, these concentrators incorporate an intuitive programmable user display for enhanced usability.
· Strong acids and bases Organic chemistry, drug discovery
-TFA, HCL, acetic acid, formic acid, sodium hydroxide
· High boiling point solvents (Aggressive) Organic chemistry, drug discovery
-DMSO, DMF, toluene, nitrobenzene, pyridine Toluene, nitrobenzene, pyridine
· Low boiling-point solvents (Aggressive) Organic chemistry, drug discovery
-Chloroform, ethyl acetate, acetone, methylene chloride, hexane

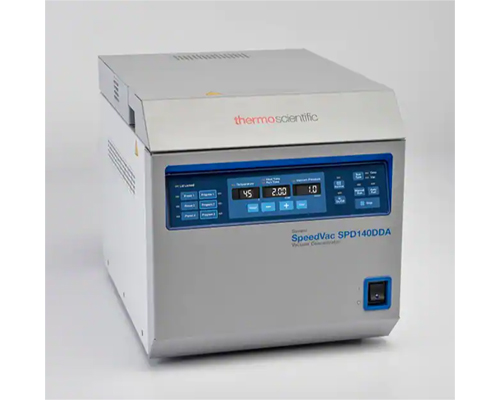

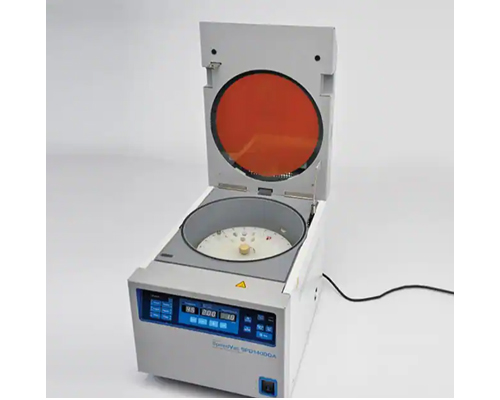

SpeedVac SPD140DDA 진공농축기 - 소용량, 중용량 샘플용
| Cat. No. |
Product |
Description |
SPD140P1-115 |
SPD140DDA-115 |
Vacuum concentrator |
RVT5105-115 |
Ultralow-temperature refrigerated vapor trap (–105°C) |
OFP400-115 |
Vacuum pump |
RH40-12 |
Rotor |
VTK80 |
Vacuum tubing kit |
SCC1 |
CryoCool™ heat transfer fluid (1 L) |
GCF400 |
Glass condensation flask |
SPD140P2-115 |
SPD140DDA-115 |
Vacuum concentrator |
UVS850DDA-115 |
Universal vacuum source (–50°C) |
RH24-15 |
Rotor |
VTK80 |
Vacuum tubing kit |
SCC1 |
CryoCool heat transfer fluid (1 L) |
GCF400 |
Glass condensation flask |
Specifications
|
Dimensions (W x D x H) |
33 x 46 x 36 cm |
Rated voltage/frequency |
115V, 60Hz |
Temperature settings |
Ambient, 35 to 80ºC in 5ºC increments |
Heat time setting |
1 min to 9 hr 59 min and continuous |
| Run time setting |
1 min to 9 hr 59 min and continuous in manual mode |
Vacuum ramp rate setting |
1 to 5 |
Vacuum level control |
20 Torr to 100 mTorr in 0.1 Torr increments |
Number of preset programs |
4 |
Number of user-defined programs |
8 |
Lid lock indicator |
Yes |
Auto and manual run buttons |
Yes |
Radiant lamp on/off buttons |
Yes |
Preheat button |
Yes |
SpeedVac SPD140DDA is a medium capacity vacuum concentrator used with a wide variety of solvents and offer resistance to TFA, DSMO and other aggressive solvents used in combinatorial chemistry applications.
It is available in kit for ease of ordering.
SPD140DDA Features:
· All the product features of SPD130DLX PLUS:
· Radiant lamps within the chamber
· Heated lid for processing high boiling points (DMSO,DMF)
· Independent timers for both heat and run
· Audible alarm to alert user when operation is finished
· Built-in vacuum gauge and vacuum display
· Wider vapor port and tubing for enhanced vapor throughput - reducing drying times
· Adjustable vacuum level for preventing bumping of difficult solvent mixtures and optimizing drying times
· -5°C Cold Trap specially designed for trapping high boiling point solvents
Solvent and Solvent Combinations for SPD140P1 KIT
· Acetic acid
· Ammonium hydroxide
· Formic acid
· Hydrochloric acid
· TFA
· Methylene chloride and TFA
· Acetone and HCL
· Methylene chloride and MEOH
· DMSO and methanol
Solvent Combinations for SPD140 P2 KIT
· DMSO
· DMF
· Toluene
SPD140 P1 includes:
· Acid-Resistant SpeedVac™ Vacuum Concentrator
· -104°C Ultra-Low Temperature Refrigerated Vapor Trap
· Oil-Free ETFE/PFA 4-Headed Pump
· Rotor RH40-12, 12x 75mm holds 40
· Glass Condensation Flask
· Tubing and Fitting Kit
· CryoCool™ Heat Transfer Fluid (1L)
SPD140P2 includes:
· Acid-Resistant SpeedVac™ Vacuum Concentrator
· -50°C Universal Vacuum Source
· 24 x 1 dram vials (15 x 45 mm) 4ml - dram vial Rotor (RH24-15)
· Chemical Trap
· Tubing and Fitting Kit
· Disposable Cartridge
· Glas Condensation Flask
· Vacuum Pump Lubricating Oil
· CryoCool™ Heat Transfer Fluid (1L)
SPD140 P1 and P2 kits are recommended for:
· Solid phase extractions
· Drying lipid extractions
· Flash chromatography fractions
· Solid phase synthesis cleavage solutions such as protein hydrolyzates and evaporating synthesis solids
· Compound management
· Evaporating dissolution solventsRotors are available for a wide variety of applications and sample formats. Please check the rotor list.
Typical applications SPD140DDA:
Requires:
· Drying lipid extraction
· Flash chromatography fractions
· Combinatorial Chemistry
· Solid phase synthesis cleavage solutions such as protein hydrolyzates and evaporating synthesis solids
· Removing ethyl acetate from samples for CAT assay
· Drug metabolites in solid phase extracts
· Analyte elution solvents for evaporation
Accessories
Rotors
중용량 샘플용 – SPD1030, SPD140 시스템 호환
| Working volume (ml) |
Capacity |
Sample Container |
Rotor Cat. No. |
50 |
6 |
50 ml conical tubes |
RH6-50 |
12 |
10 |
15 ml conical tubes |
RH10-15 |
3.5 |
10 |
5 ml microcentrifuge tubes |
RH10-15 |
1.2-1.6 |
40 |
1.5-2.0 ml microcentrifuge tubes |
RH40-11 |
1.2-1.6 |
64 |
1.5-2.0 ml microcentrifuge tubes |
RH64-11 |
1.2-1.6 |
120 |
1.5-2.0 ml microcentrifuge tubes |
RH120-11 |
15 |
8 |
15 ml Corex™ plastic tubes |
RH8-17.5 |
10 |
8 |
18 x 100, 17 x 95, or 16 x 100 mm glass or plastic tubes |
RH8-18 |
8 |
32 |
1.5-2.0 ml microcentrifuge tubes |
RH32-13 |
4 |
40 |
1.5-2.0 ml glass or plastic tubes |
RH40-12 |
4 |
72 |
1.5-2.0 ml glass or plastic tubes |
RH72-12 |
0.3 |
100 |
0.4 ml glass or plastic tubes |
RH100-6 |
0.3 |
100 |
0.5 ml glass or plastic tubes |
RH100-8 |
80 |
4 |
100 ml pear-shaped flasks |
RH4-100 |
2.4 |
12 |
4 ml vials |
RH12-20 |
16 |
12 |
1 4 ml dram vial or 15 x 45 mm vials |
RH12-28 |
3 |
24 |
50 ml conical tubes |
RH24-15 |
5.6 |
24 |
18 x 52 mm scintillation vial |
RH24-18 |
2 |
60 |
12 x 32 or 12 x 40 mm vials |
RH60-12-40 |
-- |
2 |
Shallow well plates |
RH2MP |
-- |
2 |
Deep well plates |
RHDW2MP*† |
-- |
6 |
Shallow well plates |
RHSW6MP* |
Options
어플리케이션별 옵션 사항
| Cat. No. |
Description |
| Vapor Trap (Included with the Package) |
| GCF400 |
Glass condensation flask |
| FC400 |
Flask cover for GCF400 |
| 145-6012-00 |
Foam insulating ring |
| SCC1 |
CryoCool heat transfer fluid (1 liter) |
| Oligo Prep |
| ANT100 |
Oligo prep post-trap assembly |
| ANS121 |
Ammonia neutralizing solution (1 bottle) for use with ANT100 |
| Chemical Traps |
| SCT120 |
Chemical trap kit for radioactivity |
| DC120A |
Disposable cartridge for neutralizing acid |
| DC120R |
Disposable cartridge for trapping volatile radioactivity |
| Cart |
| CC120/DX |
Deluxe convenience cart |
