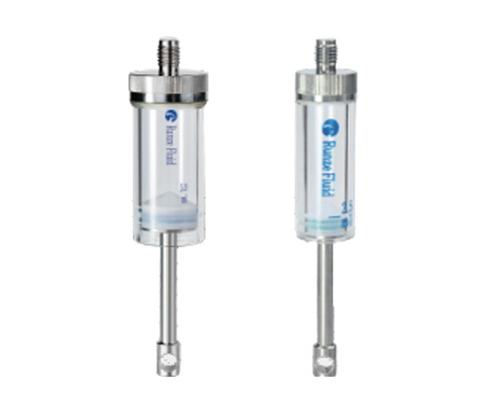

K30 Gastight Syringe
Description
Borosilicate gastight syringe is an accurate part for the industrial syringe pump to dispense fluids in the highest precision requirement, all the wetted materials are made of Teflon relative materials to be able to transfer almost all the chemicals and solvents, designed with 1/4-28UNF male thread to connect with standard fittings, if you need female thread, runze female thread adapters can be used with our gastight syringe.
Wide temperature resistance and long service life make it very popular for the microfluidic engineering team.
· Standard 1/4-28UNF thread, good tightness
· Wetted Material: Borosilicate(glass), PTFE(piston/syringe outlet) , high precision, corrosion resistance
· Maximum pressure rating 0.68Mpa(Bar)
· Easy clean and sterilization, reusable
· Service Life: 3 million times no leakage (water)
· Flexible connections to meet different application

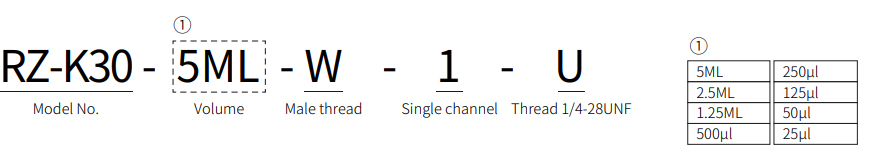

Model Numbers of Gastight Syringe
Specification
| Model No. |
Volume |
Channel |
Thread |
Stroke |
| RZ-K30-5ML-W-1-U |
5ML |
1 |
Male |
30mm |
| RZ-K30-2.5ML-W-1-U |
2.5ML |
1 |
Male |
30mm |
| RZ-K30-1.25ML-W-1-U |
1.25ML |
1 |
Male |
30mm |
| RZ-K30-500μL-W-1-U |
500μL |
1 |
Male |
30mm |
| RZ-K30-250μL-W-1-U |
250μL |
1 |
Male |
30mm |
| RZ-K30-125μL-W-1-U |
125μL |
1 |
Male |
30mm |
| RZ-K30-50μL-W-1-U |
50μL |
1 |
Male |
30mm |
| RZ-K30-25μL-W-1-U |
25μL |
1 |
Male |
30mm |

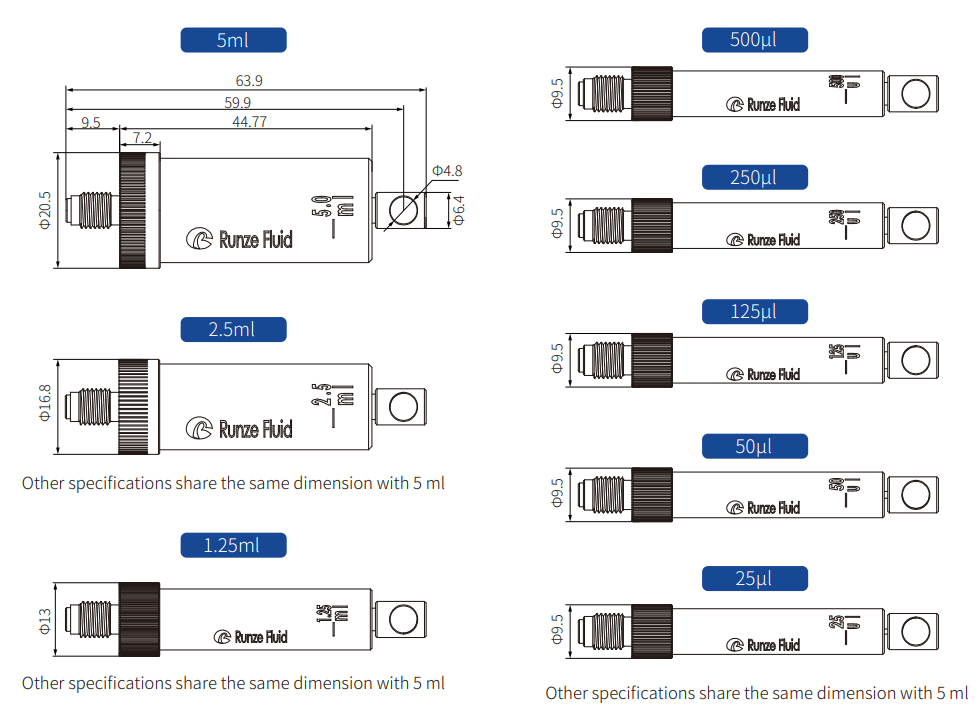

Dimension (Unit: mm)
TIPS:

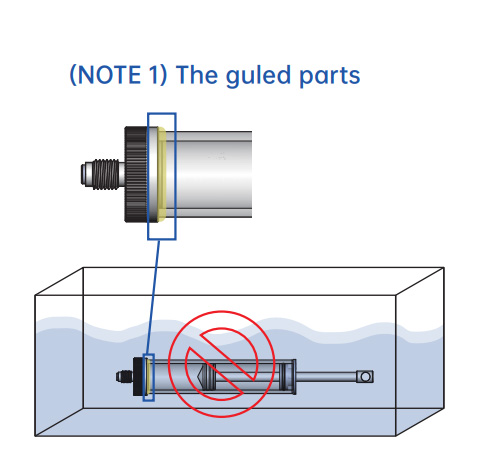

DO NOT IMMERSE THE SYRINGE IN THE SOLVENT THE GULED PARTS (NOTE 1) CAN BE SOLVED
Attention: If you change the syringe, you should also change the washer for a good seal. Washers are available from Runze.
KNOWN TO BE POORLY TOLERATED BY LIQUIDS SUCH AS: CONCENTRATED NITRIC ACID, AQUA REGIA (INCLUDING BUT NOT LIMITED TO)
PROHIBITED USED LIQUIDS: HYDROFLUORIC ACID (INCLUDING BUT NOT LIMITED TO
