Split Type Syringe Pump
실린지 펌프
Description
The intelligent syringe pump with infusion/withdrawl mode, stainless steel body, and 4.3" color LCD screen is easy to operate.
It can install and fix different types of injectors or syringes , and it is suitable for transferring micro flow rates with high precision (non-medical).
1.Online flow rate modification function: The pump is running, without stopping, adjust the flow rate at any time to meet complex application.
2.Colorful LCD display:Friendly interface, 4.3 inch LCD display every technical parameter in real time.
3.Input syringe inner diameter function: Can choose the injector from the list or input the injector inner diameter directly.
4.Two measurement mode for selection: Infusion volume --- Infusion flow rate, Infusion volume --- Infusion time.
5.4 different working modes: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion. The parameters of each working mode saving separately. Each working mode can be changed to continuous mode by setting repeat parameters.
6.Alarm function: The pump will stall and give an alarm when the drive structure of the pump is blocked.

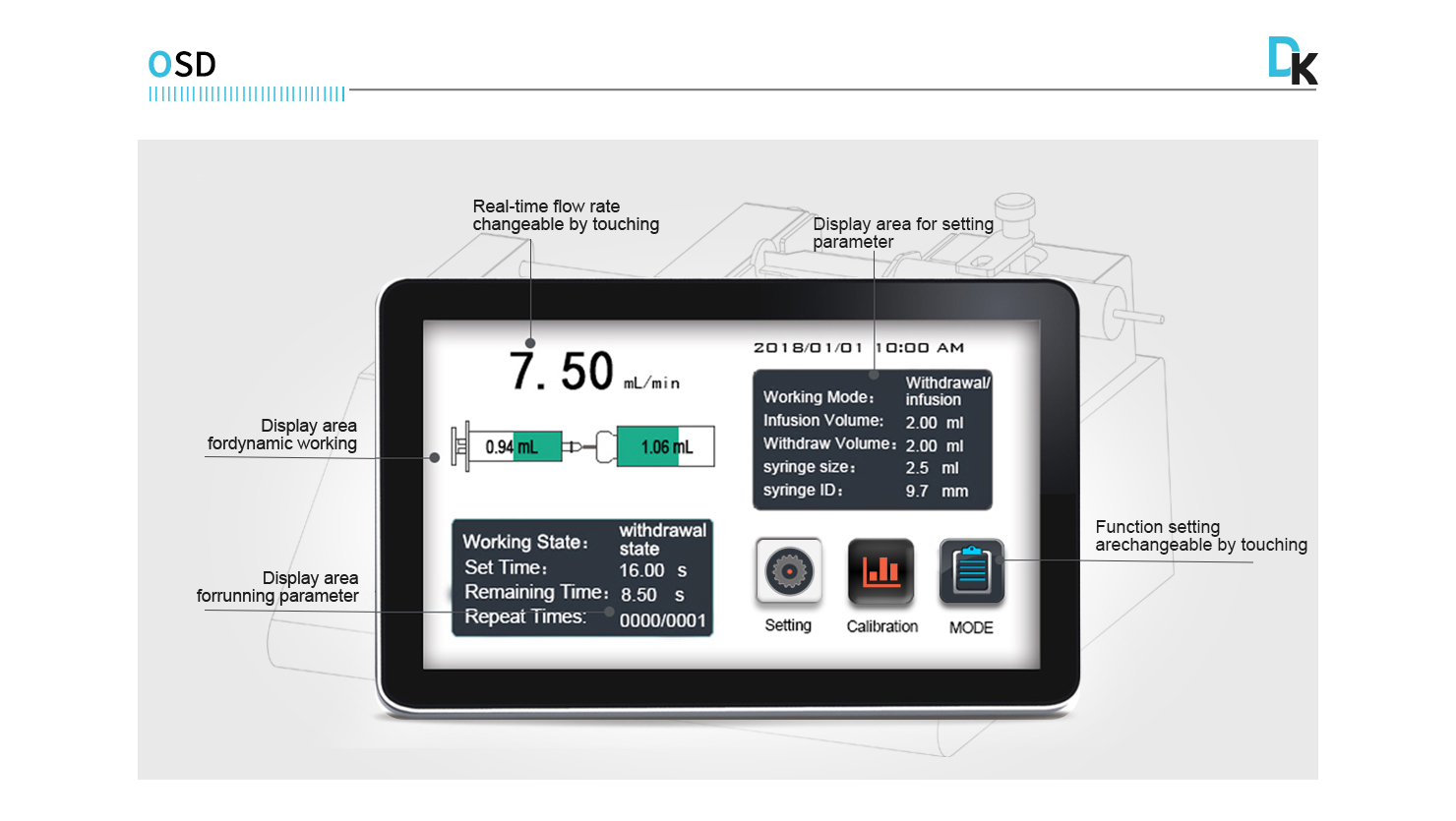

Interface Display
Specifications
|
Working mode(Five) |
Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion |
Channel number |
1 |
2 |
4 |
6 |
8 |
10 |
12 |
Syringe size |
0.5μL-150mL |
10μL-10mL |
Syringe selection |
Syringe size and customized diameter |
Linear speed range |
1μm/min-132mm/min(Flow rate=Linear speed* syringe inner cut area) |
Min. linear rate |
1μm/min |
Linear force |
8-20kgf, online adjust |
Max. stroke |
140mm |
Stoke resolution |
0.078μm/μstep |
Accuracy |
Error ≤±0.3% (Stoke ≥30% of maximum stroke) |
Back distance |
0.01-10mm |
Stored modes |
Can save at most 60 common modes |
Display |
Industrial grade 4.3”LCD color display |
Control method |
Touch screen and Mechanical keypad |
Power-off memory |
Display the previous data parameter after power supply again |
Output |
OC gate signal output,used to indicate running status and direction |
External control |
Start/stop signal, withdrawal and infusion signal, active switch signal: (5-24V) |
Start/stop signal, passive switch signal, such as foot pedal switch |
Communication interface |
RS232/RS485, Modbus protocol(RTU mode) |
Power supply |
AC100-240V/65W |
Condition temperature |
0-40℃ |
Relative humidity |
<80% |
IP rate |
IP31 |
Dimension(mm) |
282*215*165 |
282*242*157 |
280*209*175 |
280*235*175 |
282*280*175 |
282*325*175 |
weight |
4.44kg |
4.62kg |
4.56kg |
4.78kg |
4.96kg |
5.18kg |
5.38kg |
Applicable Syriinges
Syringe |
Inside Diameter(mm) |
Flow Rate(μL/min-mL/min) |
ISPLab01/ISPLab02 |
ISPLab04/ISPLab12 |
1mL |
4.70 |
0.0174-2.29 |
0.0174-2.29 |
2mL |
9.70 |
0.0739-9.755 |
0.0739-9.755 |
5mL |
12.48 |
0.1223-16.147 |
0.1223-16.147 |
10mL |
15.89 |
0.1983-26.177 |
0.1983-26.177 |
20mL |
20.00 |
0.3142-41.469 |
- |
30mL |
22.50 |
0.3142-41.469 |
- |
50mL |
28.90 |
0.6560-86.588 |
- |
100mL |
32.00 |
0.8042-106.154 |
- |
150mL |
40.00 |
1.2566-165.871 |
- |
동영상

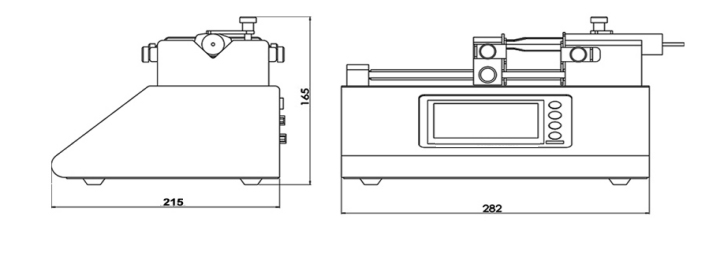

Dimension Drawing (Unit:mm)
